Description

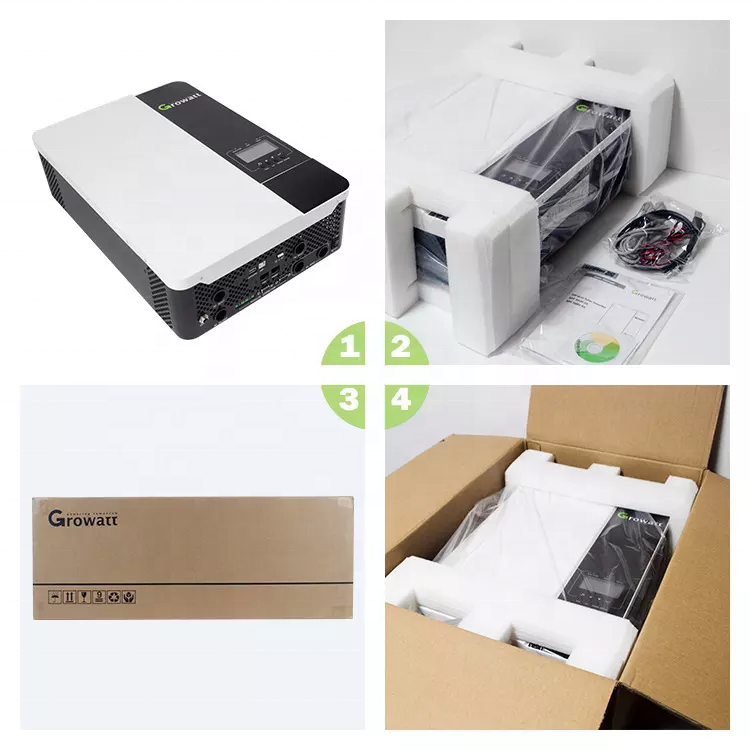

This 5000W European solar inverter is off grid, transformerless, designed with CE certification for 230Vac power systems such as Europe, Asia, Africa, Australia etc.
It converts 48Vdc battery to 230Vac single phase power (adjustable to 220V 240V as well).
Its 100A MPPT solar charger accepts PV input from 100Vdc to 450Vdc, the max PV input power is 6000 watts.

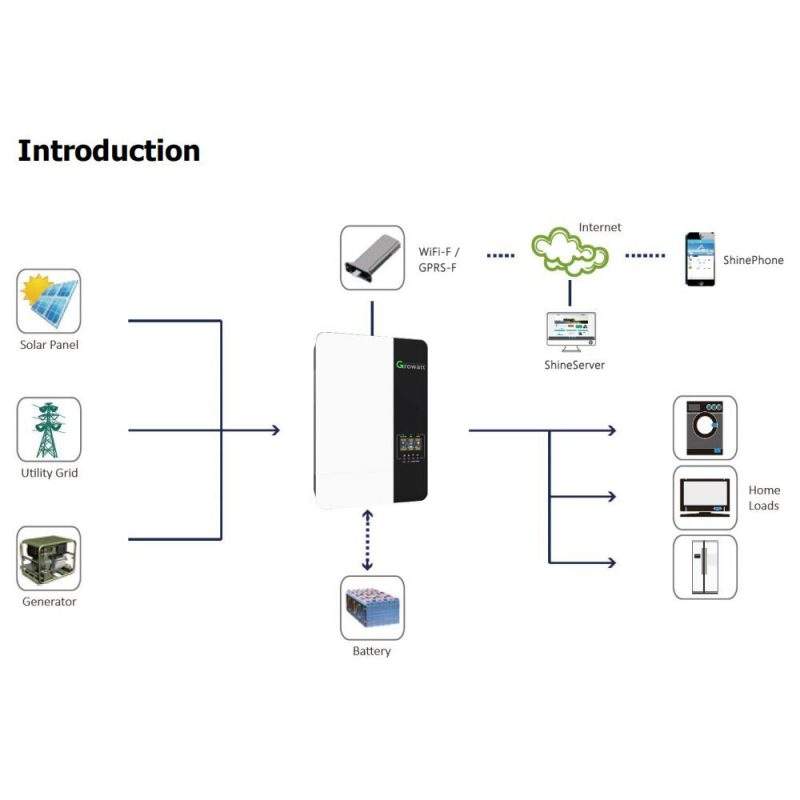

The 80A utility charger allows users to charge batteries from a utility or generator as well. It supports batteryless operation to convert PV power directly to support loads and use utility power as backup.
Its LCD allows users to change virtually all the specs of the inverter, including low/high voltage alarm/cut off, charging voltages, charging current,  AC output voltage and freq, etc. It can be stacked up to 6 pcs to increase power or form three phase 400Vac.

This M5000H-48BP model only accepts 240Vac input, and outputs only 240Vac. It willn’t accept 120Vac input, or output 120Vac.
For US customers, it can be powered by 240V power from two hotline lines and output 240Vac by following the below wiring instruction.

Or it can be connected to a separate 240V to 120/240V split phase transformer to get two separate 120V hot lines for 120V loads.

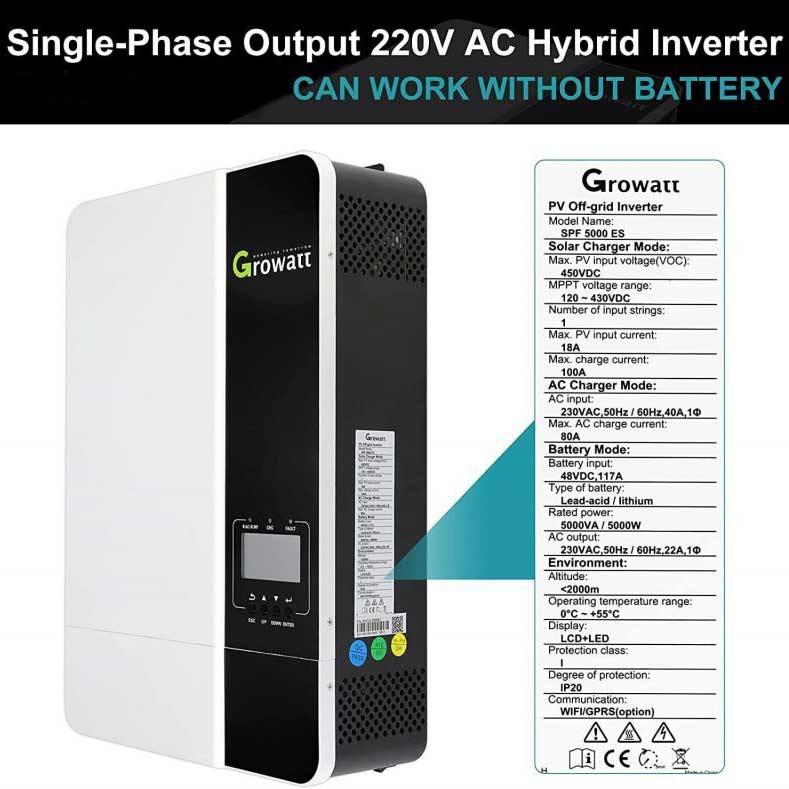

Another important feature is that it can operate without battery connected, this help user to reduce initial investment on the solar system.

There is a builtin timer which allows the inverter to use AC input power to charge batteries or output AC output at preset time.

Its versatile stacking feature allows the 5KW solar inverter to be stacked up to 6 pcs.

It virtually allows users to change all of its spec within its range.

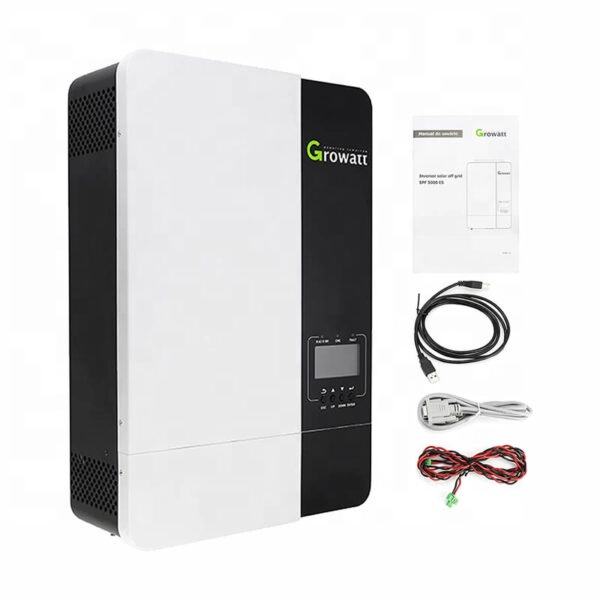

Free monitoring software is included in the package.
It allows remote monitoring by WiFi module .
It has BMS to communicate with our lithium battery powerwalls.
Contact us at info@sigineer.com to learn more.

FEATURES

• Built-in 100-450Vdc 80A MPPT solar charge controller, max PV input 4500W
• 40A Smart AC charger
• Batteryless operation to save system investment
• Builtin timer to control AC input power to charge batteries or output AC output at preset time
• High frequency transformer-less compact design; lightweight
• Pure sine wave AC 220V 230V 240V output with 50hz/60hz switch
• Parallel operation for power increase or 220/380V three phase output
• Parallel operation up to 6 units
• Optional WiFi/ GPRS remote monitoring
• Optional RS485 communication with BMS (battery management system)
• Overload, short circuit, over discharge, battery reverse protection
• Dry Contacts for delivering signal about inverter operation status

SPECIFICATIONS
