Description

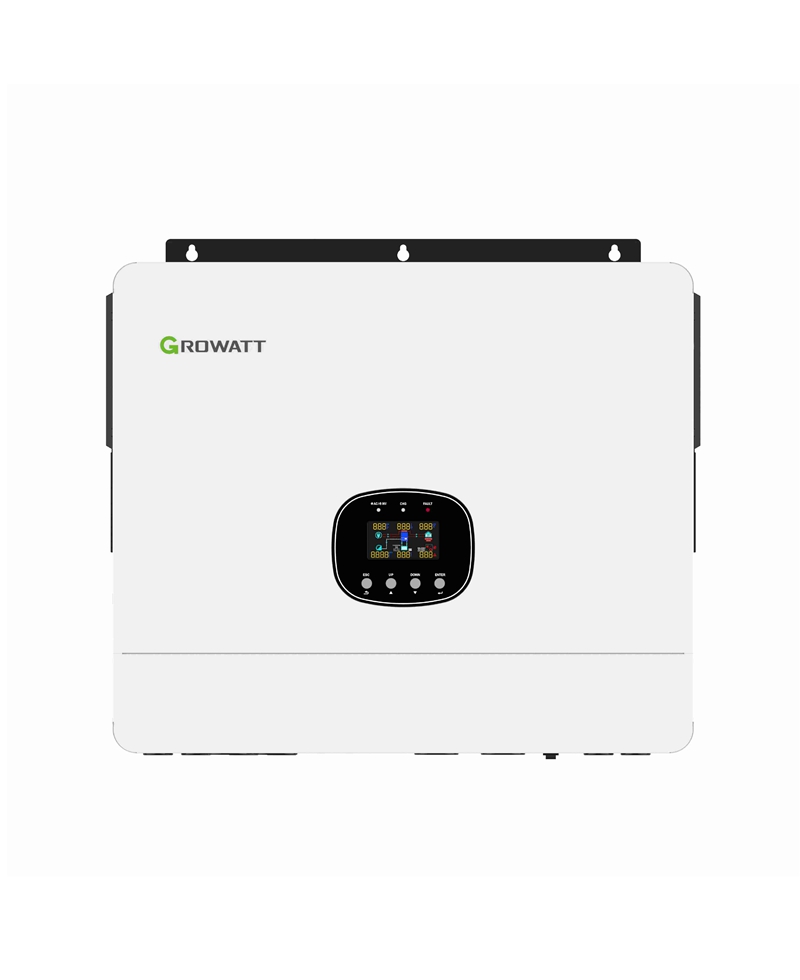

The Growatt SPE 12000 US is a multifunction hybrid solar inverter/charger designed for North American 120/240V split-phase systems. It combines a pure sine wave inverter, dual MPPT solar charge controllers, battery charging, and backup power switching in one unit.
Designed for both on & off-grid power, backup power, and solar self-consumption applications, it can integrate solar panels, a compatible battery bank, utility power, and a generator.
Contact us at info@sigineer.com to learn more.
FEATURES
- Dual MPPT solar charging: Independently manages two PV arrays with VOC up to 550V, providing flexibility for different roof orientations.
- Grid-Tie Function for Peak Shaving
- Utility and generator integration: Built-in automatic switching supports systems with both utility and generator power sources.
- Battery flexibility: Supports lithium and lead-acid batteries, with CAN/RS485 communication for compatible battery management systems.
- Battery-optional operation: Can operate with or without batteries, subject to available power and operating conditions.
- Parallel expansion: Supports up to nine units for capacity extension.
- Smart charge & load management: Includes a timer for charging and AC load control.
- Optional remote monitoring: Wi-Fi and 4G connectivity provide access to system information through supported monitoring platforms.
SPECIFICATIONS
Technical Specifications
AC Output
- Rated power: 12000W/12000VA
- Nominal voltage: 120/240V
- Nominal frequency: 60Hz
- Max output current: 50A
- Power factor: 0.8 leading to 0.8 lagging
- THDi: <5%
Solar (DC Input)
- Max recommended PV power: 18000W STC
- MPPT voltage range: 60–480V
- Number of MPPTs: 2
- Maximum Power per MPPT9,000W
- Maximum PV Voltage550V DC
- Startup Voltage120V DC
- Max input current per MPPT: 27A
- Maximum Short-Circuit Current per MPPT34A
Battery
- Battery voltage range: Lithium: 46–60V, Lead-acid: 38.4–60V
- Maximum Charging Current250A
- Max charge/discharge current: 280A
- Battery communication: CAN / RS485
Transfer
- Maximum Grid Bypass Current70A
- Transfer Time≤20ms Single; ≤30ms Parallel
Efficiency
- Peak efficiency: 96.5%
- CEC efficiency: 94.5%
- MPPT efficiency: 99%
General
- Dimensions: 550 × 465 × 150 mm
- Net Weight: 21.5 kg
- Carton Size:
- Gross Weight:
- Operating temperature: -10°C to 50°C
- Protection rating: IP20
- Cooling: DC fan
- Warranty: 5 years
- Certification: UL 1741 / CSA C22.2 and FCC
