Description

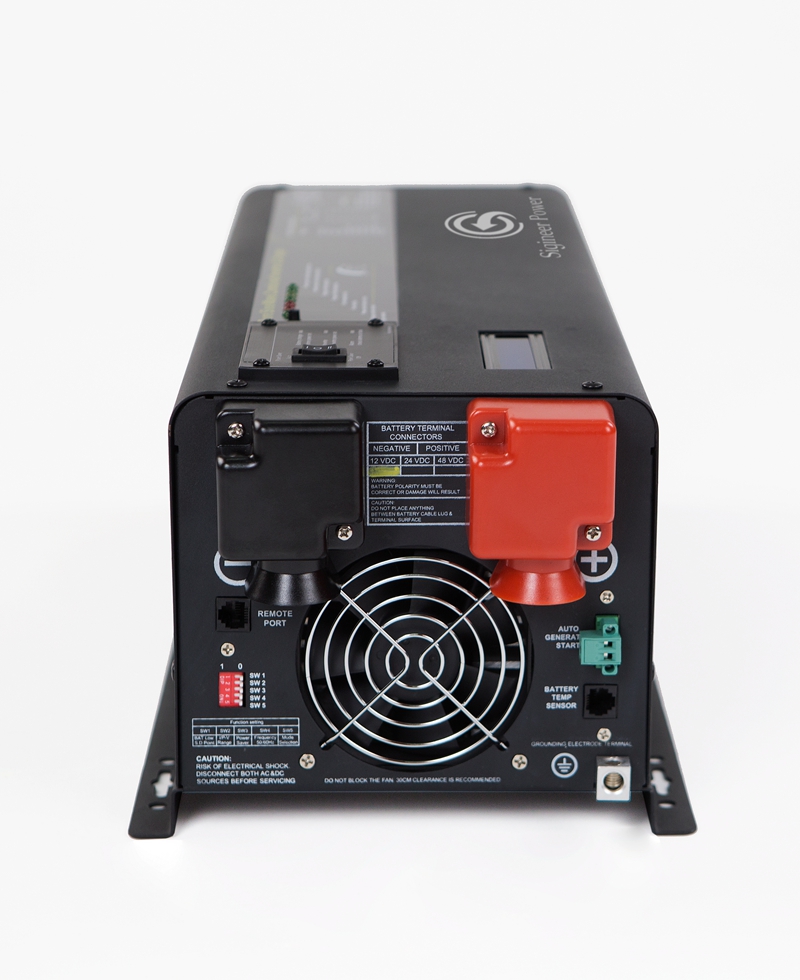

This Sigineer Power inverter charger 3000 watts changes 48 Volt to 120/240Vac Split Phase Pure Sine Wave output.
It is three products in one:
It is an inverter that converts 48V DC (direct current) power into 120V AC (alternating current) electricity to power tools and appliances.
A built-in 30 amp transfer switch will automatically switch between shore power and battery-bank power within 10 mili seconds.
A 30 amp multi stage AC-to-DC battery converter charger uses AC power from the grid or from a generator to recharge a battery bank.
The battery-type selector on the top of the 3000 watt inverter charger allows the ability to adjust the charging voltage to the battery bank.
This 3000 watts inverter charger is of industrial-grade, capable of withstanding surges of 9000 watts for 20 seconds, and its direct connect terminal block allows you to harness the full 9KW.
It works at nominal 48Volt battery array with operational battery voltage range of 40Vdc to 64 Volt, it has different battery shut down voltages, namely 40V and 42V, thus allowing different DOD(depth of discharge).
It is built with high efficiency components with an idle consumption of 11 watts in power saver mode, it is great for running your whole house, business office ,large RV, renewable solar, off-grid, mobile and emergency backup power applications that uses 120 or 240 volts AC at either 50 or 60 hertz. Ideal for 230Vac split phase well pump ranging from 1.5HP to 3HP or off grid solar panel systems.
It boasts a maximum of 10 millisecond transfer time with a 30A transfer switch. This feature is great for backup power applications, as the inverter virtually works as uninterrupted power supply (UPS).
The featured battery-type selector helps the user regulate the charging voltage according to different batteries. This capability will maximize battery lifespan.
We also have larger comparable units that can handle higher startup surges of tools with larger electrical requirements, such as an air compressor.
The inverter is marine-graded and is resistant to dust and/or water vapor in the air. This feature is great for boating applications.
The inverter charger 3000 watts comes with Auto Generator Start that starts up a generator and provides charge to the batteries or provides power to your home.
This 3KW inverter charger supports a remote diagnostics LCD screen displaying abnormalities on the system, giving you clear directions to track the issue and troubleshoot.
FEATURES
• 3000 watt inverter charger
• 48Vdc input 120/240 Volt true sine wave output
• 300% Unsurpassed surge capacity,9000 watt surge for 20 seconds
• Output voltage regulation to prevent a drop during a power surge
• AC/Battery Priority Selector
• Efficient, Power Factor Corrected, Multi Stage Smart Charger 20 Amp
• 10msec typical transfer time
• State-of -Art auto load sense with power saver
• Resettable low battery cut-off of 40V and 42V
• Extremely efficient stand by circuit with 11 watt idle
• No interference with equipments like TV, radio, etc.
• Capable of working with microwave ovens
• Exclusively designed AC- and DC – line filters for clean power output
• Built-in LCD Remote Controller Port.
SPECIFICATIONS
Inverter Output Specifications:
• Continuous Output Power: 3000 Watts
• Surge Rating: 9000 Watts (20 Seconds)
• Output Waveform: Pure Sine/Same as input (Bypass Mode)
• Output Voltage: 120/240Vac
• Nominal Efficiency: 88% (Peak)
• Line Mode Efficiency: >95%
• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
• Typical Transfer Time: 10ms (Max)
• THD: <10%
Input Specifications:
• Nominal Input Voltage: 48.0Vdc
• Low Battery Alarm: 42.0Vdc-44.0Vdc
• Low battery Trip: 40.0Vdc-42.0Vdc
• High Voltage Alarm: 64.0Vdc
• Low battery Voltage Restart: 62.0Vdc
• Idle Consumption: 60 Watts
• Power Saver Mode Idle Consumption: 15 Watts
Charger Specifications:
• Output voltage: Depends on battery type selector setting
• Ac Input Voltage For Charger: Nominal 240Vac (164-243Vac+/-4%)
• Charger Rate: 30Amp
• OverCharge Protection Shutdown: 62.8V
• Input voltage range:160-260Vac
• Adjustable charge current: off-20%-100%
• Four Stage Smart Charger
Dimensions:
• Unit Weight: 49 lbs/22KG
• Unit Size L x W x H: 20*8.5*7″ inches/508*222*180mm
• Shipping Weight: 53 lbs/24KG
• Shipping L x W x H:27.6 x 12.8 x 12.4 inches/690*320*310mm
Manual
3000 Watt Inverter Charger 48 Volt to 120V 240V Split Phase Pure Sine Wave Manual
