Description
This Sigineer Power 3000 watt Pure Sine Power Converter changes 12Volt to 120/240Vac Pure Sine Wave output.
This 3KW 12V Pure Sine Power Converter is more than just your daily inverter. It is a three-in-one product:
It is an inverter that converts 12V DC (direct current) power into 120/240V AC (alternating current) electricity to power tools and appliances.
A built-in 30 amp transfer switch will automatically switch between shore power and battery-bank power within 10 mili seconds.
A 30 amp multi stage battery charger uses AC power from the grid or from a generator to recharge a battery bank.
The battery-type selector on the top of the 3000 watt Pure Sine Power Converter allows the ability to adjust the charging voltage to the battery bank.
This 3KW 12V inverter and converter is built tough and ready to operate to its fullest extent.
In our earlier design, the battery voltage must be over 9V for the inverter to be powered on.
This inverter is built with a lithium battery wake-up module which will activate the charger with AC input power even when the battery voltage is 0Vdc.
This 3KW inverter charger package includes a free remote LCD panel and BTS .
FEATURES
• 3000 watt inverter and converter
•12Vdc input 120/240Volt true sine wave output
• 300% Unsurpassed surge capacity,6000 watt surge for 20 seconds
• Output voltage regulation to prevent a drop during a power surge
• AC/Battery Priority Selector
• Efficient, Power Factor Corrected, Multi Stage Smart Charger 70 Amp
• Lithium Battery Wake-up Feature to Charge a 0V Battery
• 10m sec typical transfer time
• State-of -Art auto load sense with power saver
• Resettable low battery cut-off of 20V and 21V
• Extremely efficient stand by circuit with 11 watt idle
• No interference with equipments like TV, radio, etc.
• Capable of working with microwave ovens
• Exclusively designed AC- and DC – line filters for clean power output

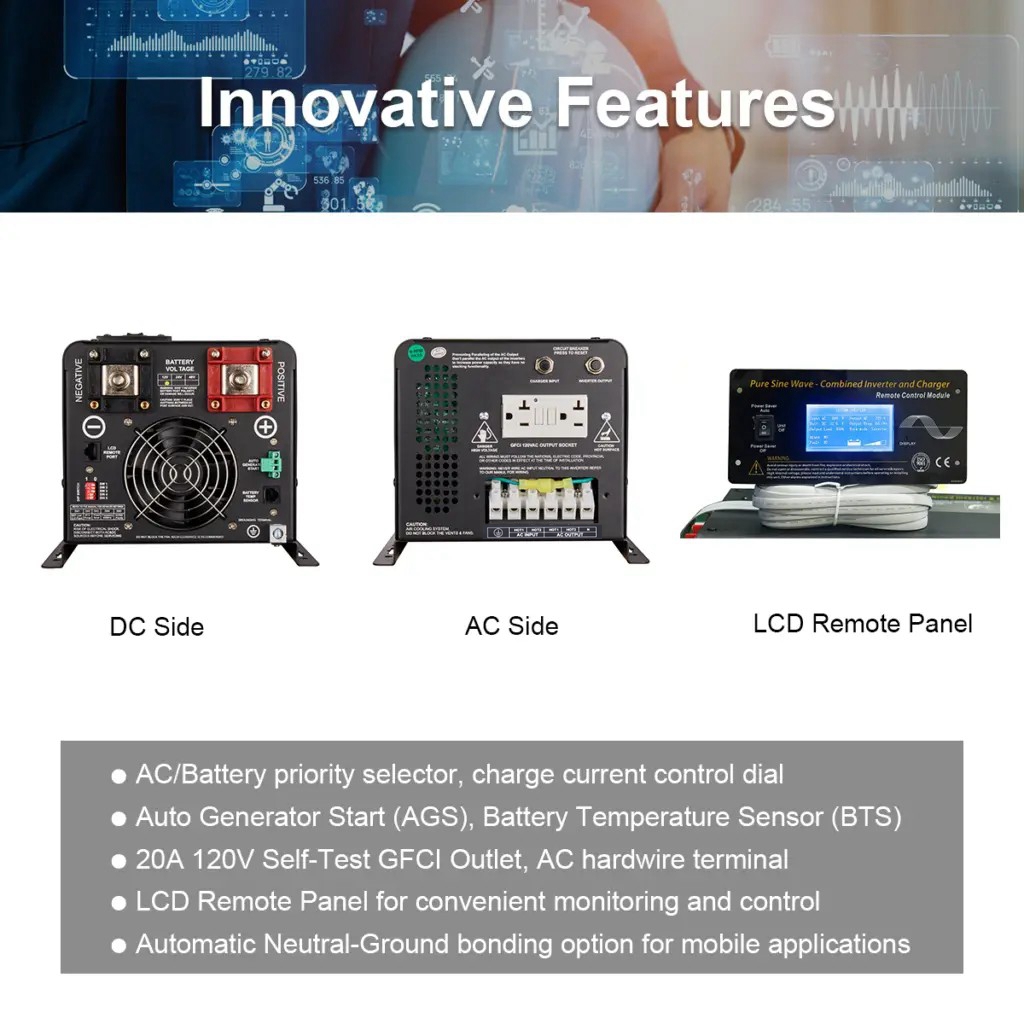

• Built-in LCD Remote Controller Port.
SPECIFICATIONS
Inverter Output Specifications:
• Continuous Output Power: 3000 Watts
• Surge Rating: 9000 Watts (20 Seconds)
• Output Waveform: Pure Sine/Same as input (Bypass Mode)
• Output Voltage: 120/240Vac
• Nominal Efficiency: 88% (Peak)
• Line Mode Efficiency: >95%
• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
• Typical Transfer Time: 10ms (Max)
• THD: <10%
Input Specifications:
• Nominal Input Voltage: 12.0Vdc
• Low Battery Alarm: 10.5Vdc-11.0Vdc
• Low battery Trip: 10.0Vdc-10.5Vdc
• High Voltage Alarm: 16.0Vdc
• Low battery Voltage Restart: 15.5.0Vdc
• Idle Consumption: 37 Watts
• Power Saver Mode Idle Consumption: 13 Watts
Charger Specifications:
• Output voltage: Depends on battery type selector setting
• Ac Input Voltage For Charger: Nominal 240Vac (164-243Vac+/-4%)
• Charger Rate: 70Amp
• Over Charge Protection Shutdown: 16V
• Input voltage range:170-250Vac
• Adjustable charge current: off-20%-100%
• Four Stage Smart Charger
Dimensions:
• Unit Weight: 49 lbs/22KG
• Unit Size L x W x H: 20*8.5*7″ inches/508*222*180mm
• Shipping Weight: 53 lbs/24KG
• Shipping L x W x H:27.6 x 12.8 x 12.4 inches/690*320*310mm
Manual
3000 Watt Inverter Charger 12 Volt to 110V 120Vac Pure Sine Wave Manual
