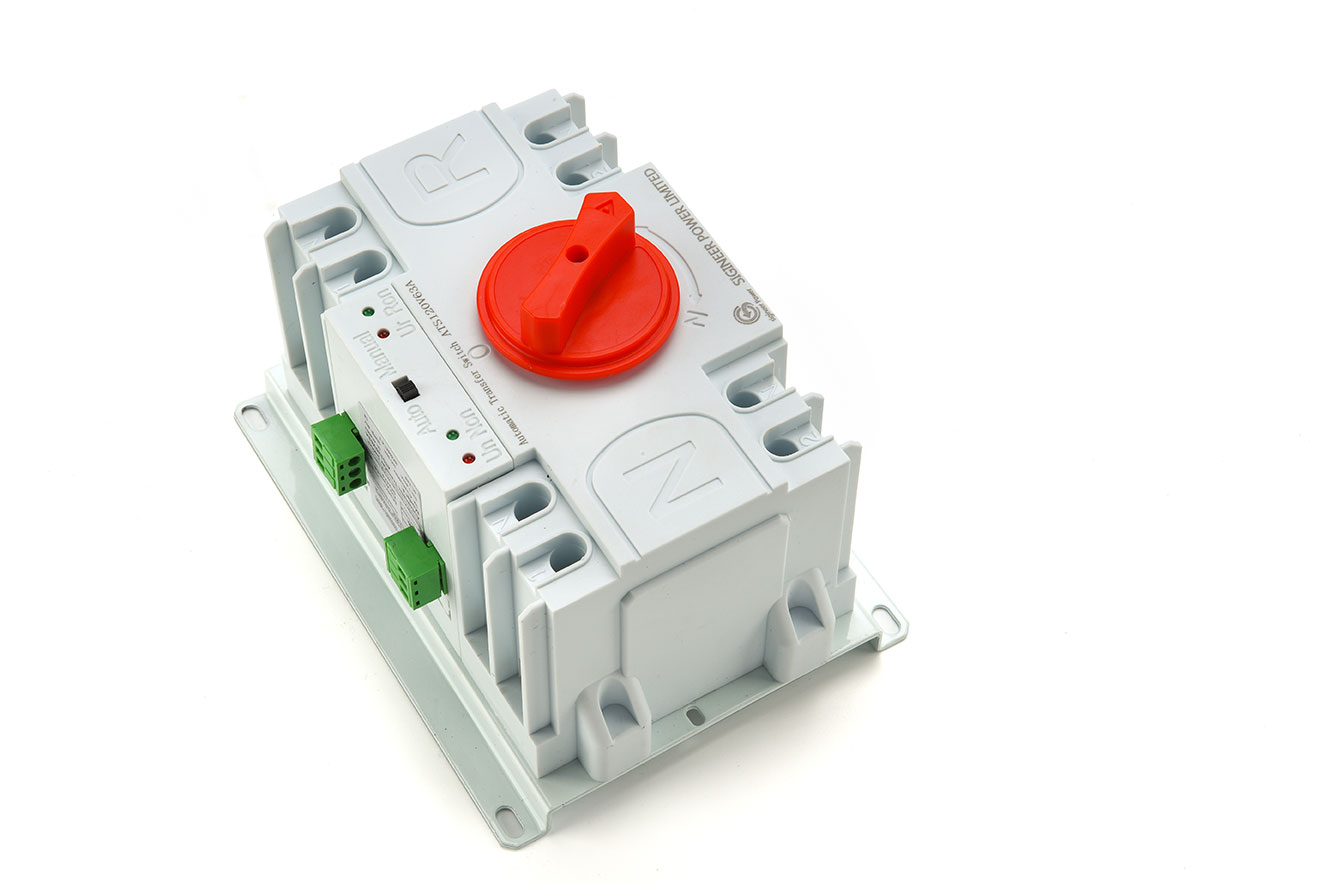

Dual Power Automatic Transfer Switch ATS 63Amp 110V 120V 2P 7.5KW

Description

This Dual Power Automatic Transfer Switch is best option to integrate both utility power and generator power as backup power for the Sigineer Power Inverter Chargers.

You can prioritize one power input over the other, in the event of a power failure in the first power source, the transfer to the backup source will be made in a few seconds.

The switch can’t turn on or turn off the generator, but our Auto Gen Start terminal on the inverter charger can turn on and off the generator.
Rated: voltage 110V 120V 50/60HZ
Max current: 63A.
Size (LWH): 173*130*120mm.
Weight: 2KG
Noted: power will be interrupted in switching.

Switch time <4S
1. Dual power Automatic transfer switch can switch to Normal power or backup power automatically.

2.Wire

Press the button to Automatic, the switch will switch to Normal power or backup power automatically.

Press the button to Manual, Then you have to rotate the middle switch manually to choose a power input.

1.Application
This is terminal type automatic transfer device. It’s suitable for single phases or split phase 2 wires dual power grid with AC 50/60Hz, rated voltage 230V and rated current up to 63A. When one power goes wrong ,it will automatic connect one or several load circuits from one power to the other power automatically, to ensure normal power supply of load circuits.

The automatic transfer switch conforms to IEC60947-6-1 and GB/T14048.11

2.Normal conditions for operation and installation:

Environmental Temperature Condition:-5~+40°C

Installation site is not more than 2000 meters above sea level.

Vertical installation or horizontal installation

Dual Power Automatic Transfer Switch ATS 63Amp 110V 120V 2P 7.5KW Manual
